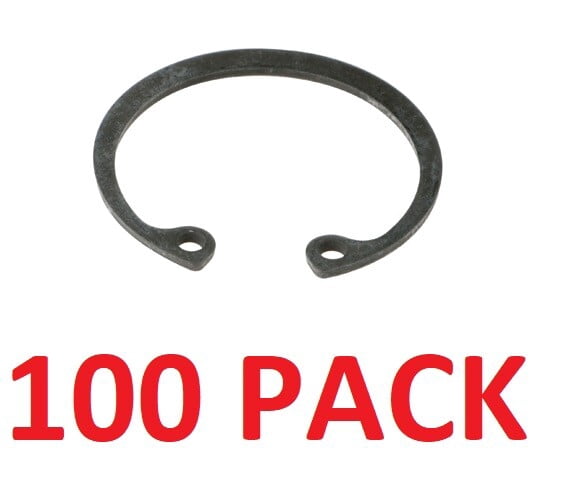

Rotor Clip DHO-100ST PD Housing Internal Retaining Ring M100 CARBON STEEL 100-PK

<p>Metric basic internal retaining ring in carbon steel manufactured to DIN472. Tapered section retaining rings decrease symmetrically from the center to the free ends, remaining circular when contracted or expanded within the limits of normal use. This assures contact with the groove along the entire periphery of the ring. These rings may be installed axially (horizontally along the center point of an axis) or radially (externally along the radius of a circle). Axially assembled retaining rings are installed into machined grooves in housings/bores (internal) or on shafts (external). These rings are manufactured with lug holes—small holes in the lugs of both axial internal and external retaining rings—that are used to install/remove them, using pliers designed for this purpose. Carbon Steel, Black Phosphate 100 mm Housing Diameter, Basic Internal Ring 105.5 mm Free Outside Diameter 3 mm Thick 3.5 mm Hole Diameter 103.5 mm Groove Diameter 3.15 mm Groove Width 1.75 mm Groove Depth Thickness 3 mm Type Axially Assembled Plating Phosphate Package Type Loose Housing Diameter 100 mm Load Capacity [MAX] 188 lbs Series DHO Groove Width 3.15 mm Free Diameter 105 1/2 mm Inch/Metric Metric Groove Diameter 103.5 mm Material Carbon Spring Steel Groove Depth 1 3/4 mm Weight 0.088 LB</p>
