Intelligent Oscilloscope ET828Pro Intelligent Graphical Digital Oscilloscope 2 in 1 with 2.4 Inches Color Screen 10MHz Bandwidth 50Msps Sampling Rate for Electronic Test

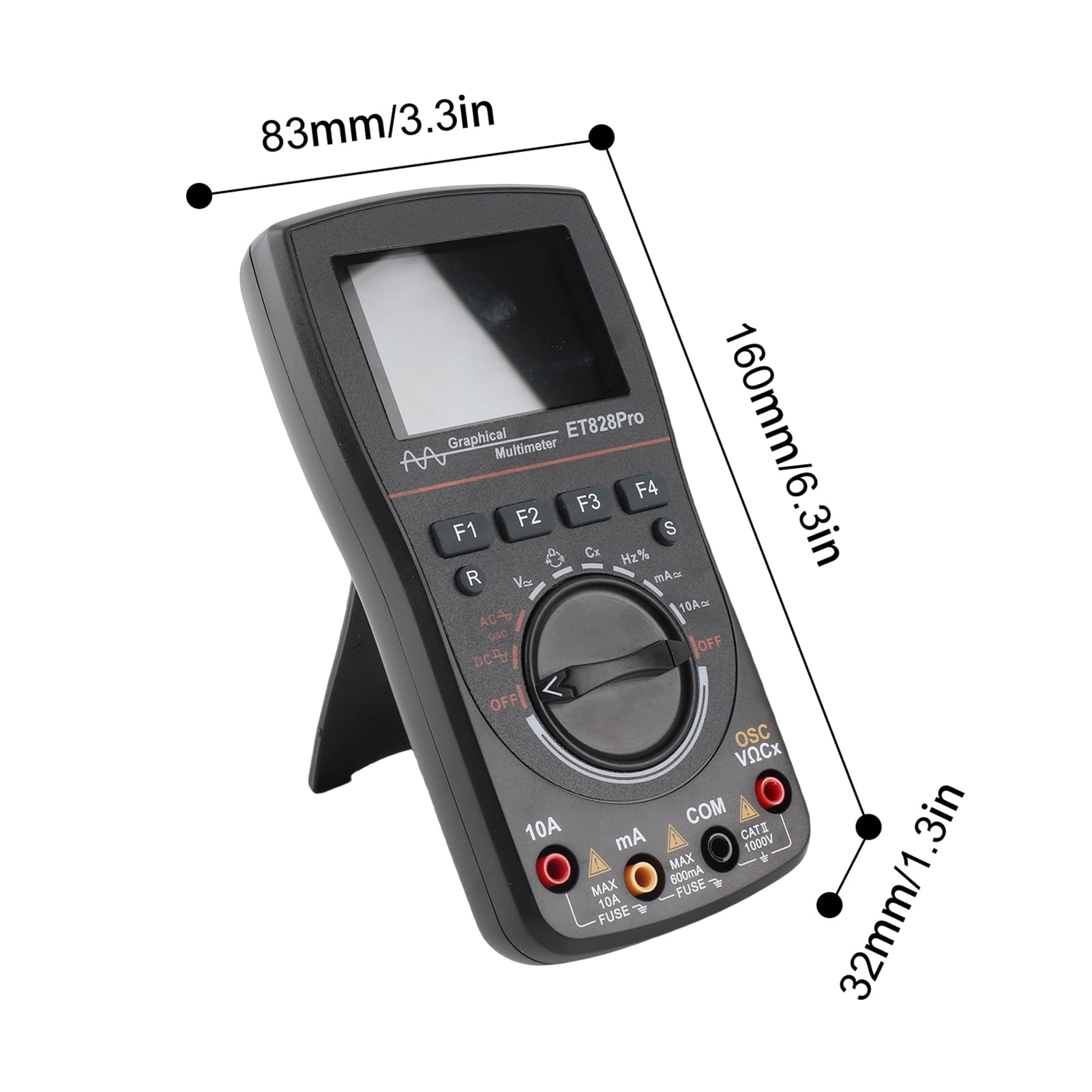

"<b>ET828Pro Intelligent Graphical Digital Oscilloscope 2 in 1 with 2.4 Inches Color Screen 10MHz Bandwidth 50Msps Sampling Rate for Electronic Test</b><br><b>Specification:</b><br>Material: ABS<br> Display: 320x240 LCM<br> Display area: about 2.4 inches<br> Backlit: white<br> Input resistance: 10 milliohm <br> Battery: 3 x AA battery not included<br> Power consumption: about 80mA<br> Use time: low light about 5 hours<br> Storage: 100 data/10 waveforms<br> Use environment: 0~40 degrees Celsius , ＜75%<br> Storage environment: -10~60 degrees Celsius , ＜90%<br> Bandwidth: ACV/10MHz ACA/5KHz<br> Maximum real time sampling rate: 50Msps<br> Multimeter measurement: automatic range + manual range<br> Oscilloscope function secondary display: VP-P, average value, effective value, frequency, time base, amplitude<br> Measurement mode: normal, automatic<br> Item size: 160 x 83 x 32mm / 6.3 x 3.3 x 1.3in<br> Item weight: 195g / 6.9ounce<br> Package size: 190 x 140 x 45mm / 7.5 x 5.5 x 1.8in<br> Package weight: 370g / 13.1ounce<br> <br> Multimeter specification:<br> DC voltage:<br> Range: 600mV/6V/60V/600V/1000V<br> Uncertainty: 0.75% rdg+10dgt<br> AC voltage:<br> Range: 600mV/6V/60V/600V/750V<br> Uncertainty: 1.0% rdg+10dgt<br> DC current:<br> Range: 40mA/400mA/4A/10A<br> Uncertainty: 1.2% rdg+10dgt<br> AC current:<br> Range: 40mA/400mA/4A/10A<br> Uncertainty: 1.5% rdg+10dgt<br> Resistance:<br> Range: 600.0 Ohm ~60.00 milliohm <br> Uncertainty: 1.0% rdg+5dgt<br> Capacitance:<br> Range: 10nF~100mF<br> Uncertainty: 2.0% rdg+10dgt<br> Frequency:<br> Range: 5Hz~10MHz<br> Uncertainty: 1.0% rdg+5dgt<br> Duty cycle:<br> Range: 0.1%~99.9%<br> Uncertainty: 1.0% rdg+5dgt<br> Diode test: voltage is about 5V, test current is about 1.5mA<br> Continuity test: judgment resistance about:&lt;50 Ohm beep<br> specifications: 500mA/250V, 10A/250V<br> <br><br><b>Package List:</b><br>1 x Graphical Multimeter<br> 1 x Pair of Test Pens<br> 1 x Protective Bag<br> 1 x User Manual <br>"10

• Oscilloscope multimeter 2 in 1, improve your work efficiency.
• One-button oscilloscope: no need oscilloscope probe, measuring waveform directly. Fast and accurate measurement, clear waveform display.
• 240x32 color screen: the color display is clearer, and the secondary display at the bottom provides more function menus.
• Multimeter measurement functions: voltage, current, resistance, capacitance, frequency, duty cycle, diode test, continuity test.
• Storage: mass storage, 100 data/10 waveforms.
