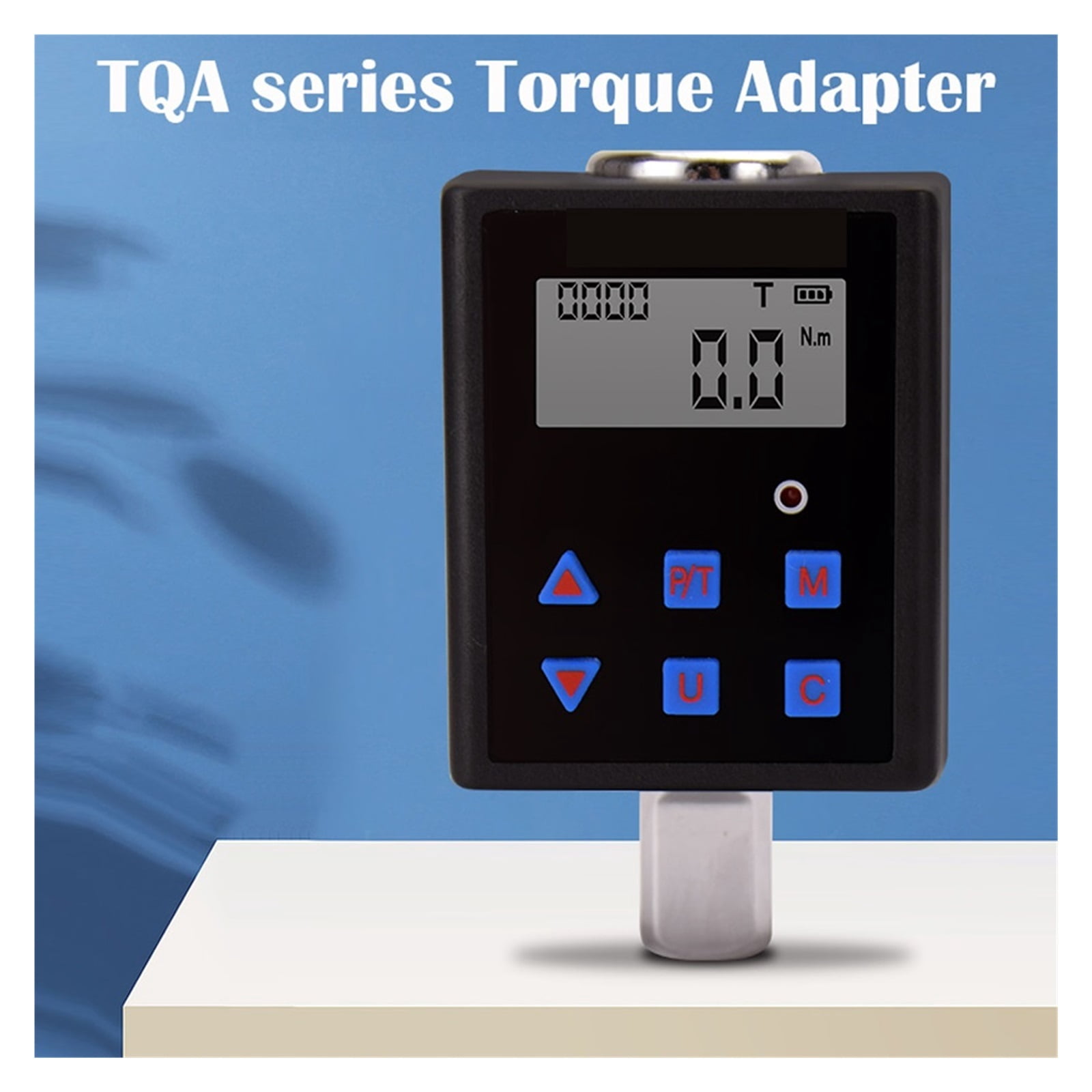

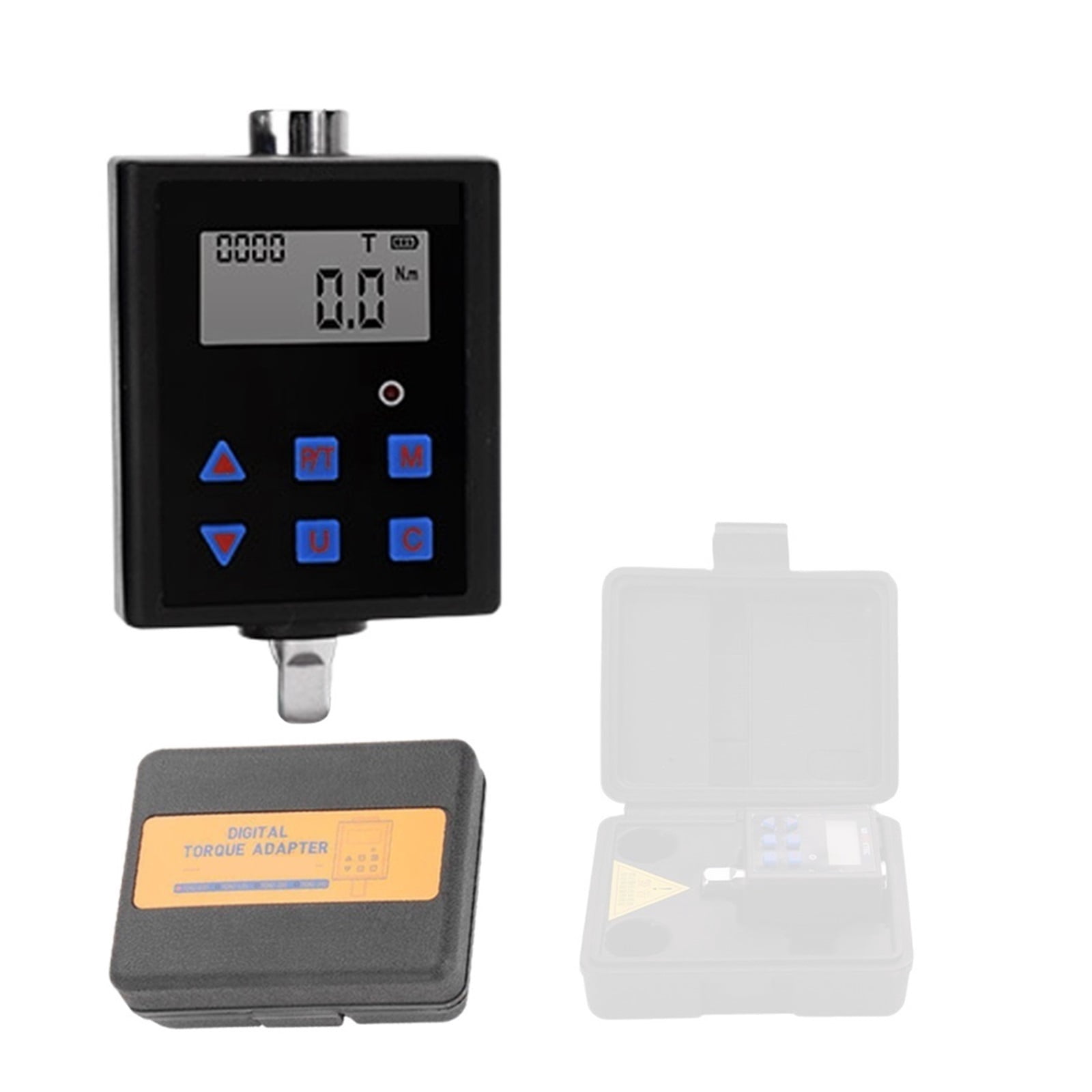

1/2" 1/4" 3/8" Digital Torque Meter Measurement Adapter Spark Bicycle KG Torque Wrench Gauge Tester Screwdriver 3-340 N.m ,Versatile Torque Units

<p>This digital torque meter is simple to operate and portable to carry.</p><p>Large digital display with backlight, supports display of torque value, unit, working mode, data storage number, easy to understand.</p><p>Two-ways measurement, support adjustable in clockwise and reverse direction, can be used in forward and reverse directions, error: 2% clockwise, 2.5% counterclockwise, more convenient to use with ratchet hand. (Wrench to be purchased separately.)</p><p>Two working modes, freely switchable between "trace" tracking mode and "peaks" peaking mode.</p><p>Four units are available, you can adjust between Kgf.cm, N.m, Ibf.ft and Ibf.in depending on your needs.</p>

• Digital torque meter for various kinds of tightening and dismantling control, with easy operation, simple and lightweight, multi-unit conversion, audible alert, adjustable in clockwise and reverse directions, etc. Used in conjunction with a common ratchet, the torque handle can be used as a digital torque handle with the same functions as the digital torque ratchet. (Handle to be purchased separately)
• Features.
• This digital torque meter is simple to operate and portable to carry.

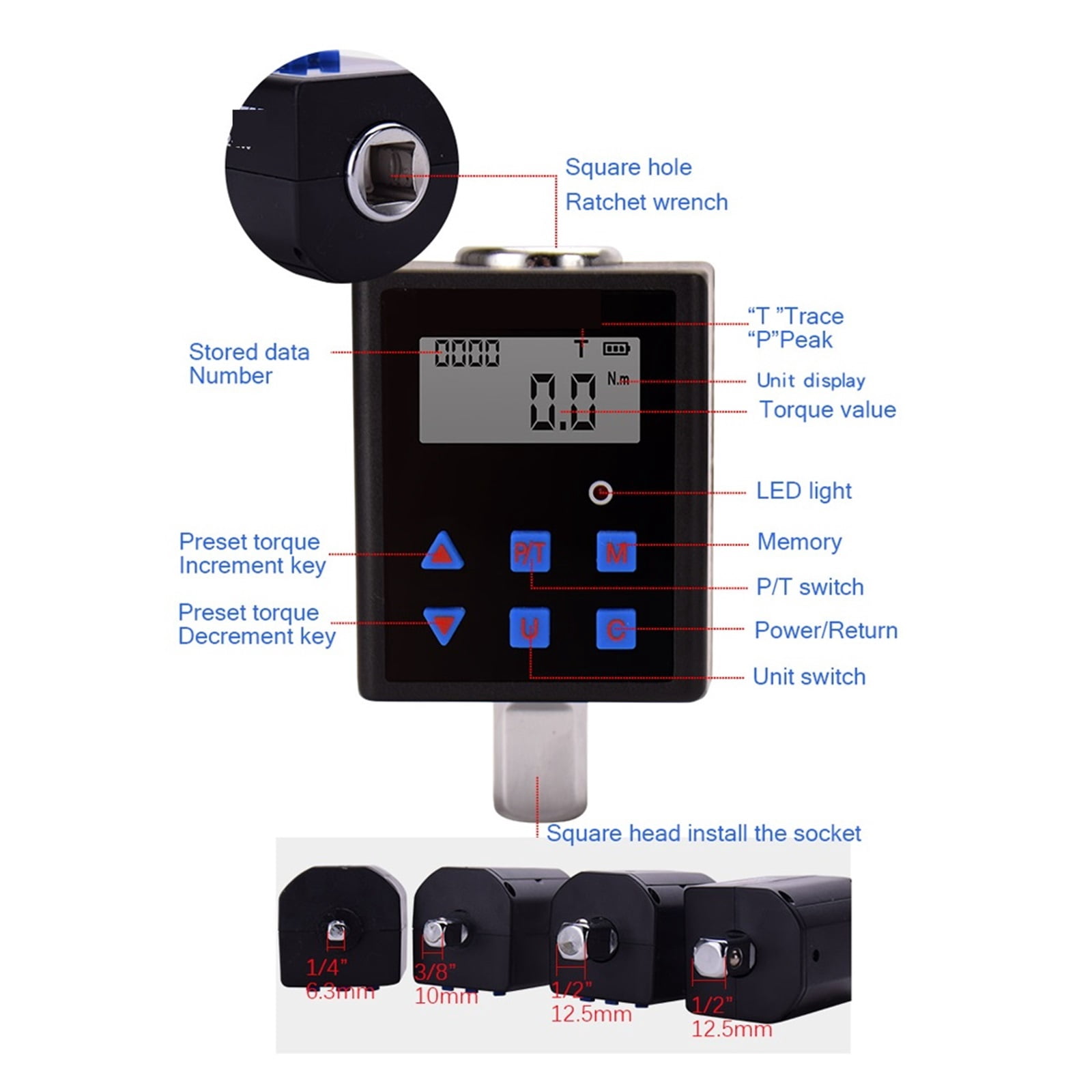

• Large digital display with backlight, supports display of torque value, unit, working mode, data storage number, easy to understand.
• Two-ways measurement, support adjustable in clockwise and reverse direction, can be used in forward and reverse directions, error: 2% clockwise, 2.5% counterclockwise, more convenient to use with ratchet hand. (Wrench to be purchased separately.)
• Two working modes, freely switchable between "trace" tracking mode and "peaks" peaking mode.
• Four units are available, you can adjust between Kgf.cm, N.m, Ibf.ft and Ibf.in depending on your needs.
• Pre-set values with sound and light alarm, preset values according to the torque to be measured, when the buzzer is switched on and the preset target torque value is reached, the buzzer will sound long and the red light will be on.
• When used in conjunction with a common ratchet, it becomes a digital torque indicator with the same function as a digital torque plate. (Handle to be purchased separately.)
• Widely used in the automotive, bicycle and machinery repairing industries.
• Specifications:
• Name: Digital Torque Meter
• Material: plastics

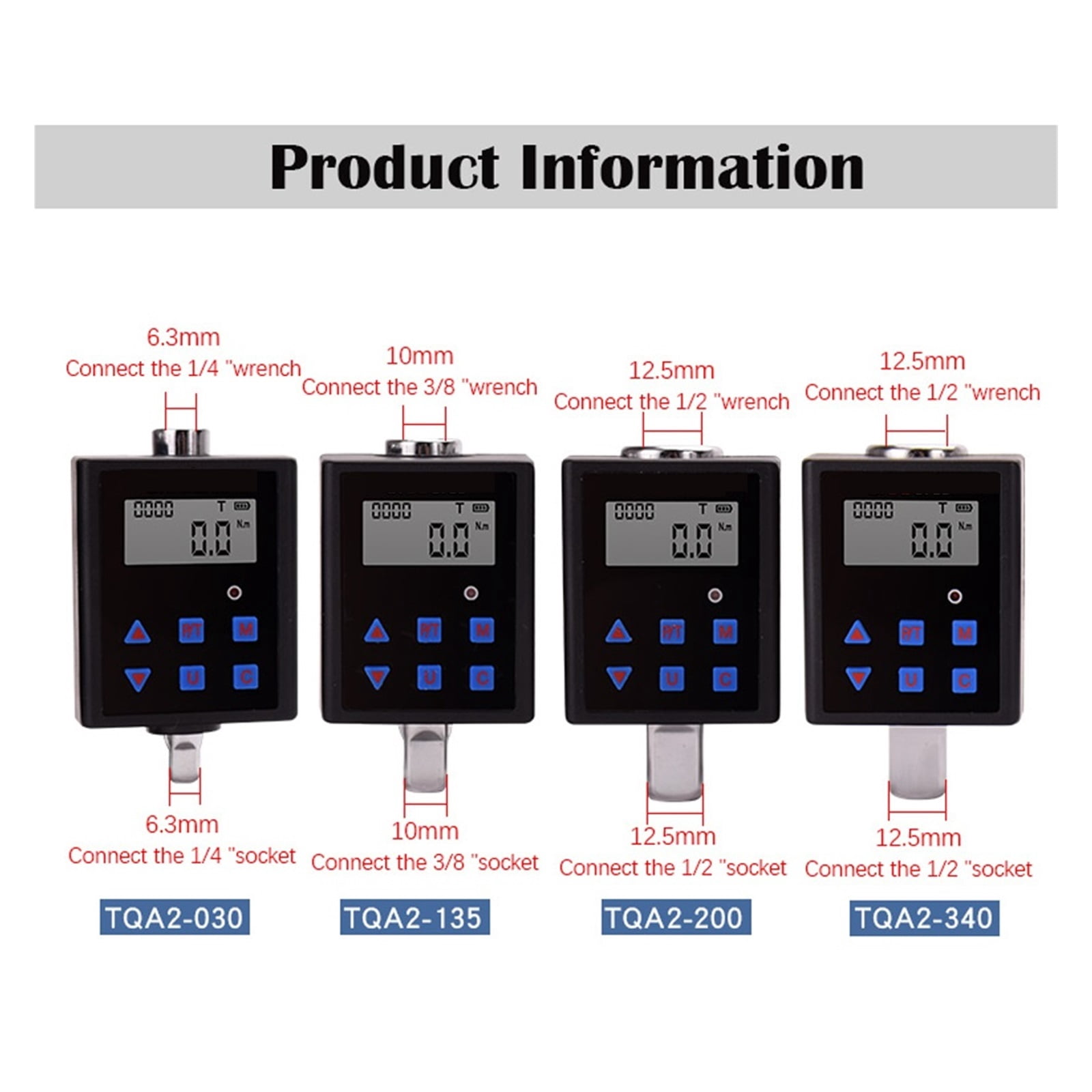

• Models: TQA2-030, TQA2-340, TQA2-135, TQA2-200 (optional)
• Batteries: 2 * No.7 batteries(not included)
• Accuracy: 2% clockwise, 2.5% counterclockwise
• Data storage: 999, 999, 999, 999
• Indexing values: 0.01, 0.1, 0.1, 0.1
• Display ranges: 0.3-30, 1.35-135, 2-200, 3.4-340
• Alarm ranges: 0.9-30, 4-135, 6-200, 10-340
• Accuracy guarantee ranges: 20-100%, 20-100%, 20-100%, 20-100%
• Connection heads size: 1/4inch, 3/8inch, 1/2inch, 1/2inch
• Operating mode: P(Peaks)/T(Trace)
• Torque units: kgf.cm/N.m/Ibf.ft/Ibf.in
• Push button: 6
• Operating temperature: -20°C to 70°C
• Operating humidity: 15-90%
• Automatic shutdown: 60s
• Carried adapter:
• TQA2-030: 1/2inch square hole to 1/4inch squarehead
• TQA2-340: 1/2inch square hole to 3/8inch squarehead
• TQA2-135: 1/2inch square hole to 1/4inch squarehead, 1/2inch square hole to 3/8inch squarehead
• TQA2-200: 1/2inch square hole to 1/4inch squarehead, 1/2inch square hole to 3/8inch squarehead

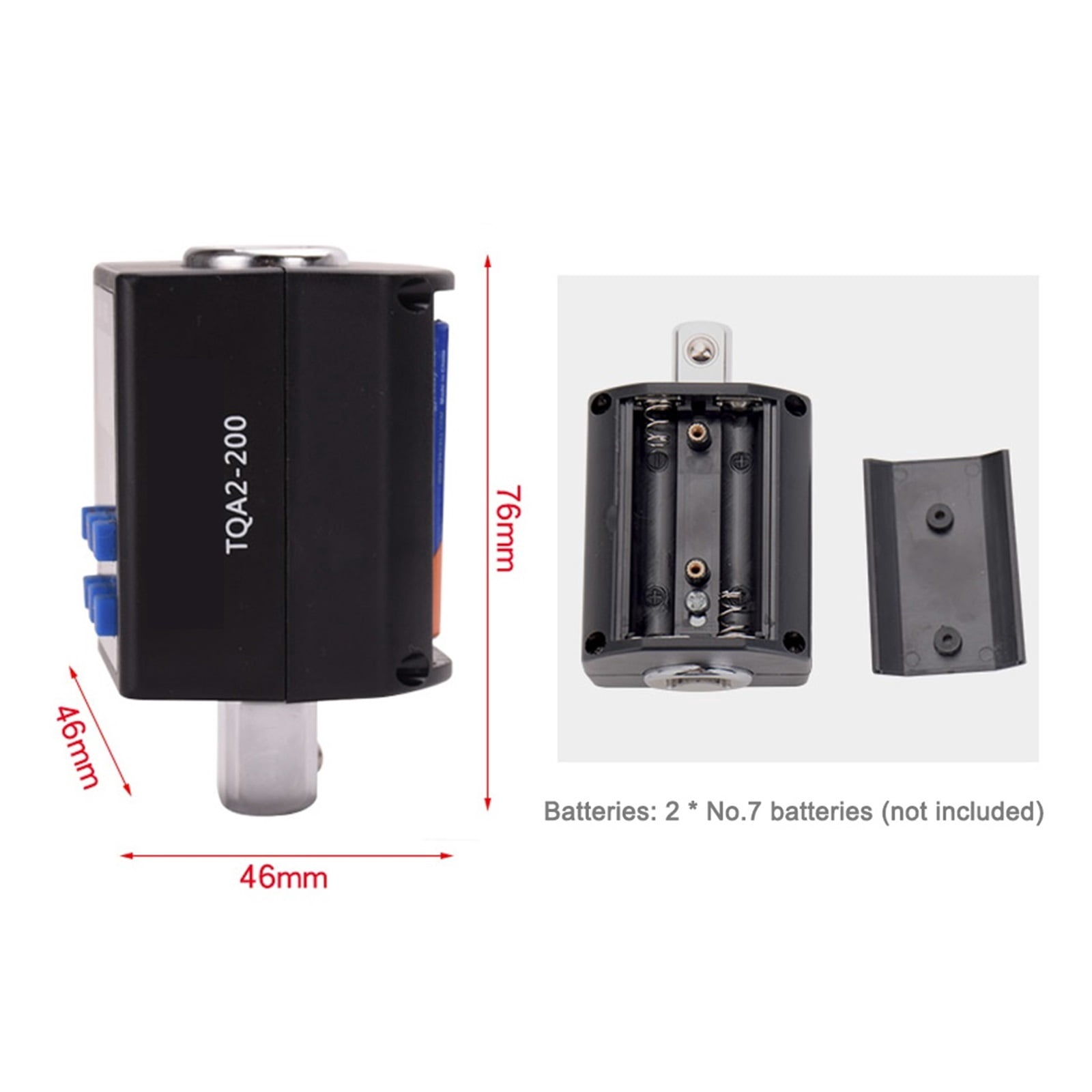

• Product size: 76 * 47 * 47mm / 2.99 * 1.85 * 1.85in
• Product weight:
• TQA2-030: 200g / 7.05ounce
• TQA2-340: 300g / 10.58ounce
• TQA2-135: 400g / 14.11ounce
• TQA2-200: 400g / 14.11ounce
• Package size: 130 * 108 * 60mm / 5.12 * 4.25 * 2.36in
• Package weight:
• TQA2-030: 300g / 10.58ounce
• TQA2-340: 350g / 12.35ounce
• TQA2-135: 450g / 15.87ounce
• TQA2-200: 450g / 15.87ounce
• Packing List (TQA2-030):
• 1 * Digital Torque Meter
• 1 * Screwdriver
• 1 * Joint Adapter
• OR
• Packing List (TQA2-340):
• 1 * Digital Torque Meter
• 1 * Screwdriver
• 1 * Joint Adapter
• OR
• Packing List (TQA2-135):
• 1 * Digital Torque Meter
• 1 * Screwdriver
• 2 * Joint Adapter
• OR
• Packing List (TQA2-200):
• 1 * Digital Torque Meter
• 1 * Screwdriver
• 2 * Joint Adapter
• -----BDA4-200----
• Features:
• Large screen makes reading data more convenient and clear.
• Just add a common ratchet wrench to become a digital torque wrench with the same function as a normal torque wrench.
• Full-featured, small and compact, easy to use and carry.
• It can be widely used in machinery, aviation, railway, maintenance, inspection and other fields.
• The storage box can better protects and store it.
• Specifications:
• Material: ABS+steel
• Color: black
• Battery: 2 * AAA battery, 1.5V (not included)
• Type: BDA2-030, BDA3-135, BDA4-200, BDA4-340 (optional)
• Accuracy: ±2%
• Memory: 50
• Resolution: 0.1
• Display range:
• BDA4-200: 2-200Nm
• Alarm range:
• BDA4-200: 10-200Nm
• Accuracy guarantee range: 20-100% of max torque
• Drive:
• BDA4-200: 1/2"
• Model: peak/trace
• Units: Nm/Kg.c-m/Kg.m/lb.in/lb.ft
• Auto shut off: 70 seconds (if do not use digital torque adapter)
• Item size: 75 * 45mm / 3.0 * 1.8in
• Item weight:
• BDA4-200: 210g / 7.4ounce
• Package size: 120 * 95 * 65mm / 4.7 * 3.7 * 2.6in
• Package weight:
• BDA4-200: 320g / 11.3ounce
• Package list:
• 1 * Digital Torque Wrench
• 1 * User Manual
• 1 * Box
